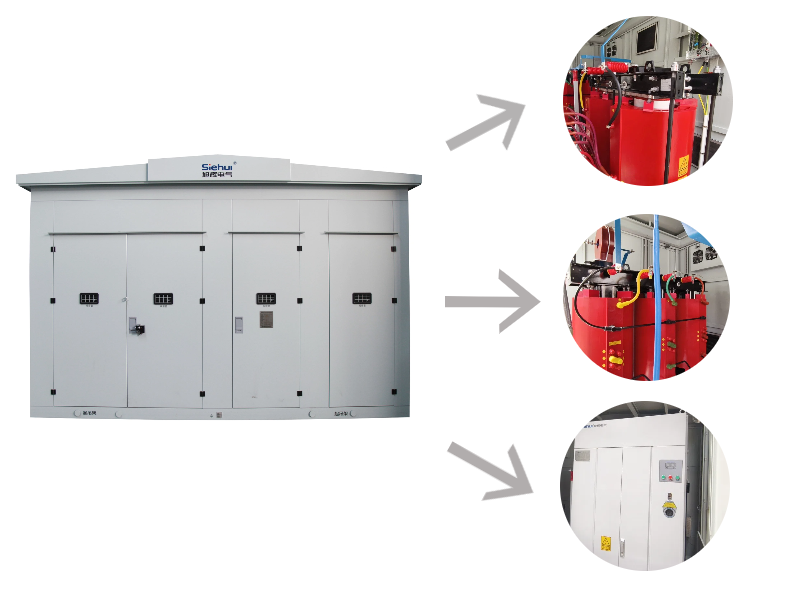

Arc suppression coil device

Product Introduction
Arc suppression coil device  is used to compensate for the capacitive current when a single-phase grounding fault occurs. It can eliminate the arc reignition to ensure the power grid safe operation. It is widely applied in scenarios such as the power grid field, new energy power generation field, and power supply systems of industrial and mining enterprises.

Product Specifications
Voltage level: 10 kV, 35 kV.
Offset current: 10 A - 200 A.
Frequency: 50/60 Hz

Product Features
1) It adopts the advanced algorithm, with real-time tracking and calculation and high accuracy.
2) It comes with a built-in line selection function and supports medium resistance line selection to improve the accuracy.
3) Regulation methods: Regulation of ring road, capacity and high short-circuit impedance.
4) Insulation method: Epoxy resin casting type (dry insulation), oil-immersed type.
