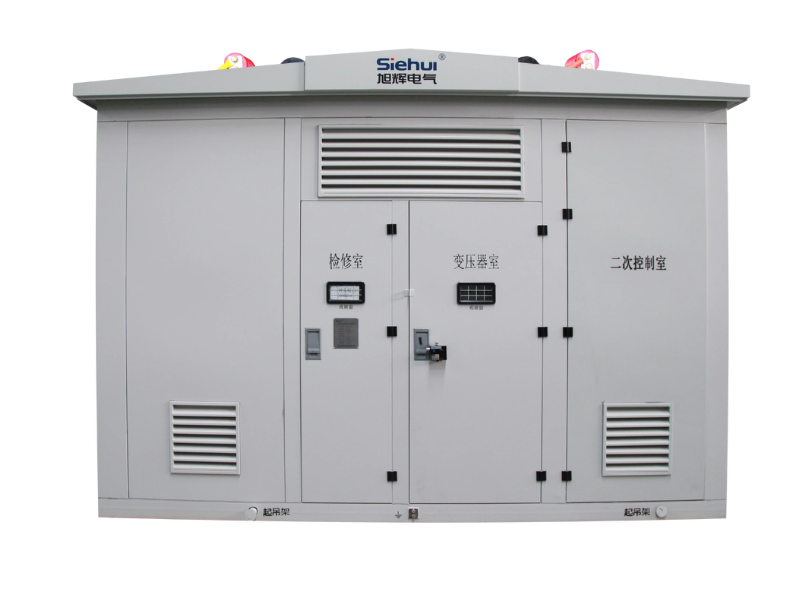

Prefabricated Substation



Product Introduction
The prefabricated substation integrates high-voltage switchgear, distribution transformer and low-voltage distribution device into one or several cabinets to form a complete set of distribution equipment. It adopts advanced technology and a fully enclosed structure with no exposed live part, ensuring high safety. It features a high automation degree. The protection system adopts a microcomputer-based integrated automation device, which can achieve functions such as remote measurement, remote signaling, remote control, and remote adjustment, meeting the requirements of unattended operation.
The structure of a prefabricated substation includes the main body and auxiliary equipment. The main body usually includes transformer room, switch cabinet room, cable tunnel and a cabinet room. Each part has clear functions - waterproof, dustproof and anti-corrosion functions. Auxiliary equipment such as distribution cabinet and equipment cabinet are used for circuit protection, control and communication.

The prefabricated substation is suitable for various places, such as urban residential communities, stations, ports, airports, parks and other densely populated areas. With a good-looking appearance, it is easy to coordinate with the environment. It is particularly suitable for these places that require a beautiful appearance and reliable power supply.


Product Specifications
Voltage level: 6 kV, 10 kV, 35 kV.
Transformer rated capacity: 30-2500 kVA.
Frequency: 50/60 Hz
High-voltage cabinet: Model KYN28-12, XGN15-12 and XGN66 can be selected.
Low-voltage cabinet: Model GGD, GCK and MNS can be selected. Reactive power compensation cabinet and capacitor box can be selected.


Product Features
1) Integrated design: It can integrate multiple electrical devices into a single cabinet. With a compact structure, it occupies a small floor area, and this is easy for transportation and installation and can shorten the construction period.
2) High reliability: It adopts high-quality electrical equipment and advanced manufacturing processes to ensure stable and reliable operation. It has multiple protection functions, such as overload protection, short-circuit protection and grounding protection to enhance the system safety.
3) Strong environmental adaptability: The cabinet is designed with anti-corrosion, dust-proof and water-proof features, making it suitable for various harsh environments. Good heat dissipation performance ensures the normal operation of the equipment in high-temperature environments.
4) Modular design: Each functional module is independently designed for easy maintenance and replacement. It can be configured flexibly according to user needs to meet the requirements of different application scenarios.
